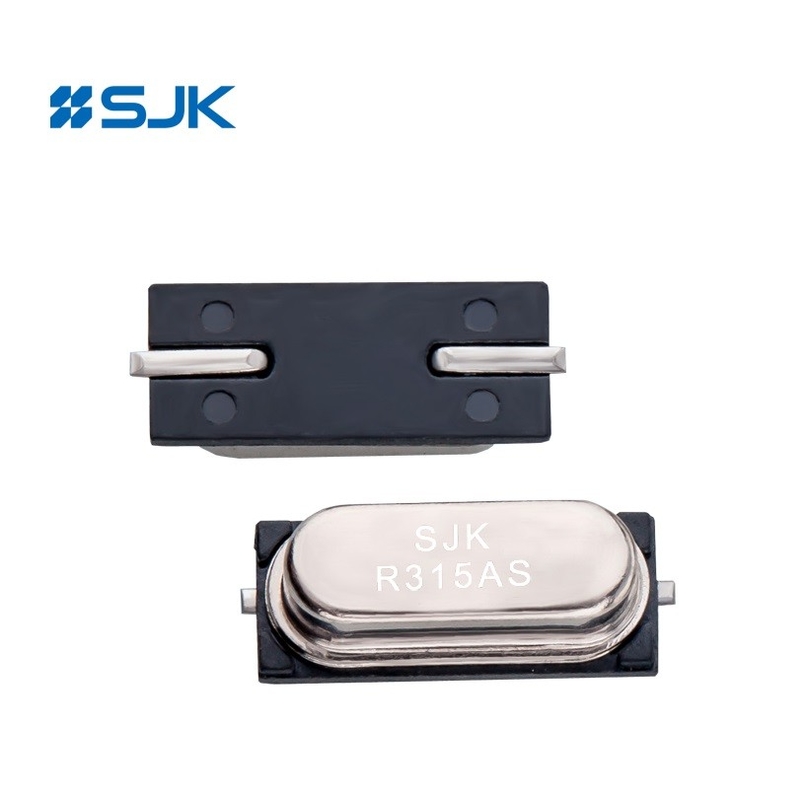

Name: HC-49SMD Saw Resonator With 433.92MHz ±75KHz Tolerance For Communication
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-SR434M49SMDA6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-SR434M49SMDA6
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

HC-49SMD SAW Resonator

Frequency:

315MHz / 433.92MHz

Frequency Tolerance:

±75kHz

Insertion Loss:

2.5dB Max.

Size:

12.7*4.8*3.2mm

Package:

49SMD

Supply Ability:

30Kpcs per Month

Highlight:

HC-49SMD Saw Resonator

Saw Resonator 12.7 x 4.8 x 3.2mm

433.42 mhz crystal For Communication

Product Description

HC-49SMD Saw Resonator With 433.92MHz ±75KHz Tolerance For Communication

Features

HC-49SMD Case Package

1-Port SAW Resonator

Other Frequencies Available

Electrostatic Sensitive Device (ESD)

Automatic Mounting, Solder Reflow Capable

Package code QCC8C

Applications: Automotive Electronics, Remote Control, Consumer Electronics, Alarms, etc.

RoHS Compliant & Pb Free

Specifications

Item / Type		Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	315MHz / 433.92MHz, or specify			MHz
Center Frequency	Tolerance from 433.92MHz		±75		MHz
Insertion Loss			2.5	2.8	dB
Quality Factor	Unloaded Q		9270
Quality Factor	50Ω loaded Q		2300
Temperature Stability	Turnover Temperature	25	40	55	℃
	Turnover Frequency		Fc
	Frequency Temperature Coefficient		0.037		ppm/℃
Frequency Aging	Absolute Value During The First Year			≤10	ppm/yr
DC Insulation Resistance Between Any Two Pins		1.0			MΩ
RF Equivalent RLC Model	Motional Resistance		33	38	Ω
	Motional Inductance		121.119		μH
	Motional Capacitance		1.19904		fF
	Static Capacitance		2.1		pF
Operating Temperature		-40		+85	℃
Storage Temperature		-55		+125	℃
DC Voltage			30		V

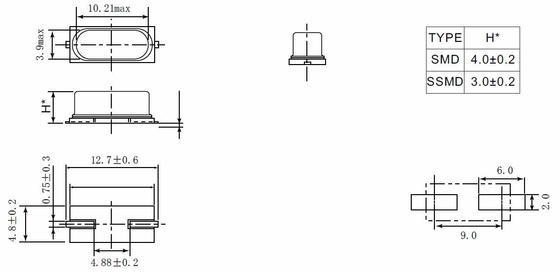

Dimensions [mm]
