Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

5AW SAW Filter

Frequency:

1568MHz

Insertion Loss:

2.0dB Max.

Size:

2.5*2.0*0.7mm

3dB Bandwidth:

43MHz Type

Operating Temperature Range:

-40~+85℃

Storage Temperature Range:

-55~+125℃

Supply Ability:

30Kpcs per Month

Highlight:

SMD 2520 custom saw filter

custom saw filter 1568MHz

High Frequency filter low-loss

Product Description

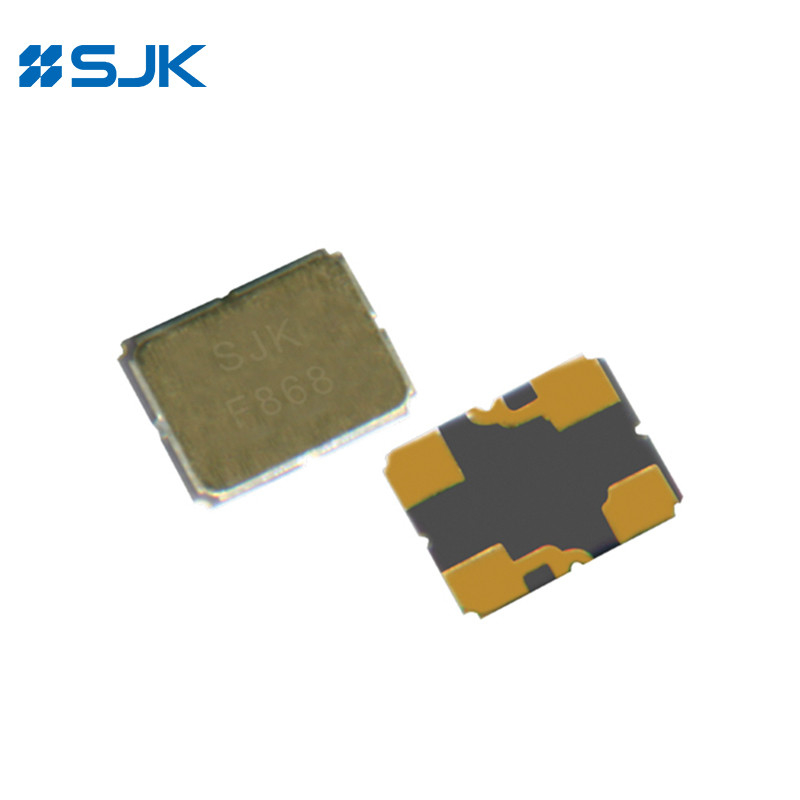

High Frequency SMD 2520 SAW Filter 1568MHz For amplitude, low-loss saw component

Features

Ceramic package for Surface Mounted Technology (SMT)

High frequency SAW filter

Package size 2.5×2.0×0.65mm

Package Type DCC4A

Electrostatic Sensitive Device (ESD)

Automatic mounting and reflow soldering

RoHS Compliant & Pb Free

Specifications

Item		Minimum	Typical	Maximum	Unit
Center Frequency		1568.00MHz, or other high frequency			MHz
Insetion Loss			1.4	2.0	dB
Insetion Loss	1559.08~1563.098MHz		1.6	2.5	dB
Insetion Loss	1573.42~1577.420MHz		1.7	2.5	dB
Amplitude Ripple (p-p)	1559.098~1577.42MHz		0.5	1.0	dB
3dB Bandwidth		35	43		MHz
Group Delay Ripple	1559.098~1577.42MHz		10	30	ns
Absolute Attenuation	DC~1463.00MHz	32	38		dB
	1463.00~1493.00MHz	38	43		dB
	1493.00~1512.00MHz	35	40		dB
	1512.00~1624.00MHz	50	55		dB
	1643.00~1673.00MHz	48	53		dB
	1673.00~2000.00MHz	40	45		dB
	2000.00~1463.00MHz	25	30		dB
Input VSWR	1559.098~1577.42MHz		1.5:1	2.0:1
Output VSWR	1559.098~1577.42MHz		1.5:1	2.0:1
Operating Temperature		-40		+85	℃
Storage Temperature		-55		125	℃

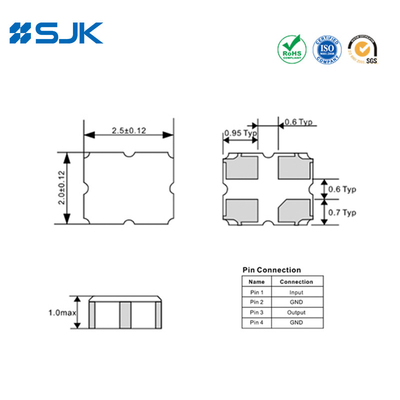

Dimensions [mm]

Captura de pantalla 2022-03-21 111721.jpg
