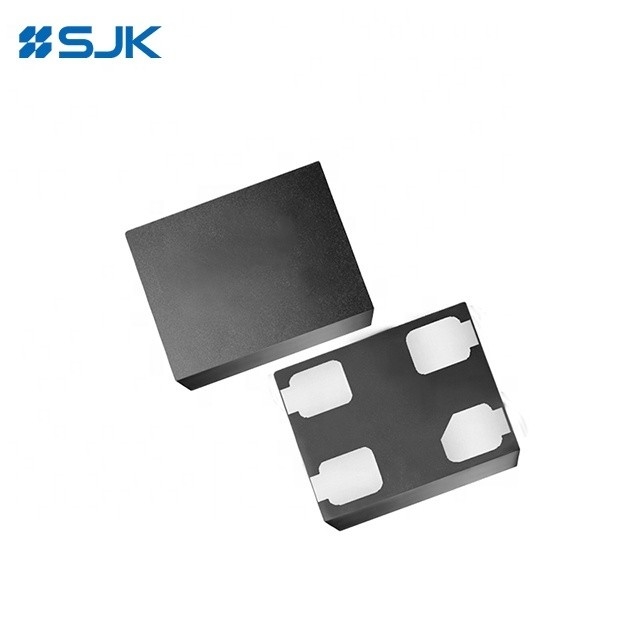

Name: SJK8008 2016 MEMS Oscillator 1-220MHz 1.62-3.63V, -40~+85℃
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK8008BI-73-33E-3.686400D
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK8008BI-73-33E-3.686400D
MOQ:	1
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

SJK8008 Series Low Power MEMS Oscillator

Frequency Range:

1~110MHz

Output Type:

LVCMOS / HCMOS

Supply Voltage:

1.8~3.3V

Frequency Stability:

±20ppm, ±25ppm, ±50ppm

Size:

2.0x1.6mm

Applications:

Ethernet, USB, Medical, Datacenter, Audio, Etc

Supply Ability:

8Kpcs per day

Highlight:

2016 automotive mems oscillator

automotive mems oscillator 3.63V

mems clock oscillator 1.62V

Product Description

SJK8008 2016 MEMS Oscillator 1-220MHz 1.62-3.63V, -40~+85℃

Features

Frequency range from 1MHz to 110MHz

Excellent frequency stability as low as ±20ppm

Low power consumption of 3.5mA at 1.8V

Standby mode for longer battery life

Fast startup time of 5ms

LVCMOS / HCMOS output type

Size 2.0×1.6

Automatic mounting and reflow soldering

Applications: DSC, Ethernet, USB, SATA, IP Cam, Medical electronics, Audio & Video, Datacenter, etc

RoHS Compliant / Pb Free

Specifications

Type	SiT8008 Low Power MEMS Oscillator
Output Type	LVCMOS / HCMOS
Frequency Range	1~110MHz
Supply Voltage	1.8~3.3V
Frequency Stability	±20ppm, ±25ppm, or specify
Current Consumption	4.5mA Max.
Standby Current	4.3mA Max.
OE Disable Current	4.2mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.5ns Max.
Voltage Vol (Max.) / Voh (Min.)	10%Vcc / 90%Vcc
Voltage Vil (Max.) / Vih (Min.)	30%Vcc / 70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	130ns Max.
Resume Time	5ms Max.
RMS Period Jitter	3pS Max.
Peak to Peak Period Jitter	30pS Max.
RMS Phase Jitter (12KHz~20MHz)	2pS Max.
Storage Temperature	-60~+150℃
Packing Unit	2016 :3000pcs./reel

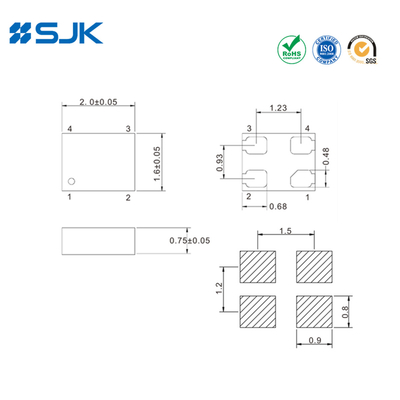

Dimensions [mm]

SJK8008-PIN-FUNCTION

sjk8008-dimensions
