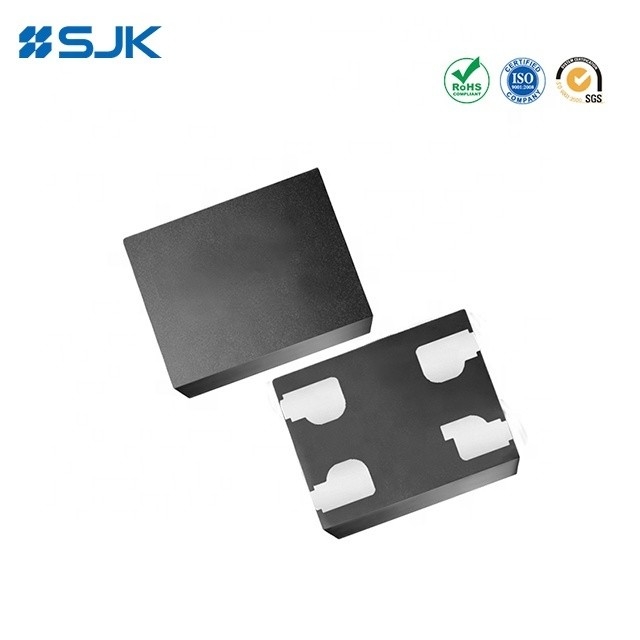

Name: SJK8918 MEMS Oscillator For Industrial Medical And High Temperature
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK8918BI
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK8918BI
MOQ:	100pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

SJK8918 MEMS Oscillator High Temperature

Frequency Range:

1MHz To 110MHz

Frequency Stability:

±20ppm

Output Type:

LVCMOS

Operating Temperature:

-40 To +105℃

Voltage Supply:

1.8V

Package Size:

2.0x1.6mm

Aging:

±1 Ppm Per Year

Standby Mode:

Yes

Output Frequency Stability:

±5 Ppm To ±50 Ppm

Frequency Pulling:

±5 Ppm To ±50 Ppm

Enable/Disable Function:

Yes

Phase Jitter:

0.5 Ps RMS (LVPECL)

Operating Temperature Range:

-40°C To +85°C

Output Load:

15 PF To 50 PF

Supply Ability:

8Kpcs per day

Highlight:

Industrial mems crystal

mems crystal High Temperature

mems tcxo High Temperature

Product Description

SJK8918 MEMS Oscillator for Industrial Medical and Other High-Temperature Applications

Features

Frequencies between 1 MHz and 110 MHz accurate to 6 decimal places
Operating temperature from -40°C to 125°C. Available -55°C option
Supply voltage of 1.8~3.3V
Excellent total frequency stability as low as ±20 ppm
Low power consumption of 3.5 mA typical at 1.8V
LVCMOS/LVTTL compatible output
Industry-standard packages: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 mm
RoHS and REACH compliant, Pb-free, Halogen-free and Antimony-free
Applications: Industrial, medical, non AEC-Q100 automotive, avionics and other high-temperature applications, sensors, PLC, servo, networking equipment, medical video

cam, asset tracking systems, etc.

Specifications

Type	SiT8918 MEMS
Output Type	LVCMOS/HCMOS
Frequency Range	1~110MHz
Supply Voltage	1.8~3.3V
Frequency Stability	±20ppm, ±25ppm, ±50ppm, or specify
Current Consumption	4.7mA Max.
Standby Current	8.5μA Max.
OE Disable Current	4.5mA Max.
Operating Temperature	-40~+105℃ /-40~+125℃
Duty Cycle	45~55%
Rise/Fall Time	3ns Max.
Voltage Vol (Max.)/Voh (Min.)	10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.)	30%Vcc /70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	130ns Max.
Resume Time	5ms Max.
RMS Period Jitter	3ps Max.
Peak to Peak Period Jitter	25ps Max.
RMS Phase Jitter (12KHz~20MHz)	2ps Max.
Storage Temperature	-65~+150℃
Packing Unit	2016/2520/3225: 3000pcs./reel 5032/7050: 1000pcs./reel

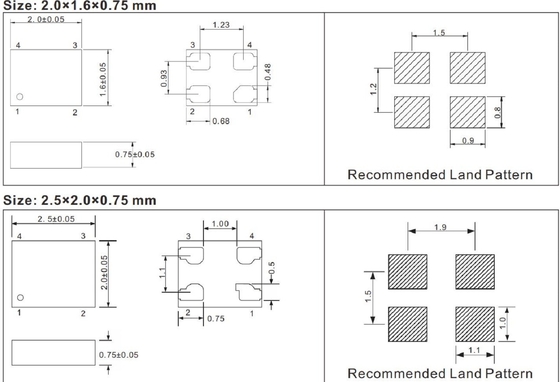

Dimensions [mm]

SJK8009-PIN-FUNCTION

sjk8009-dimensions
