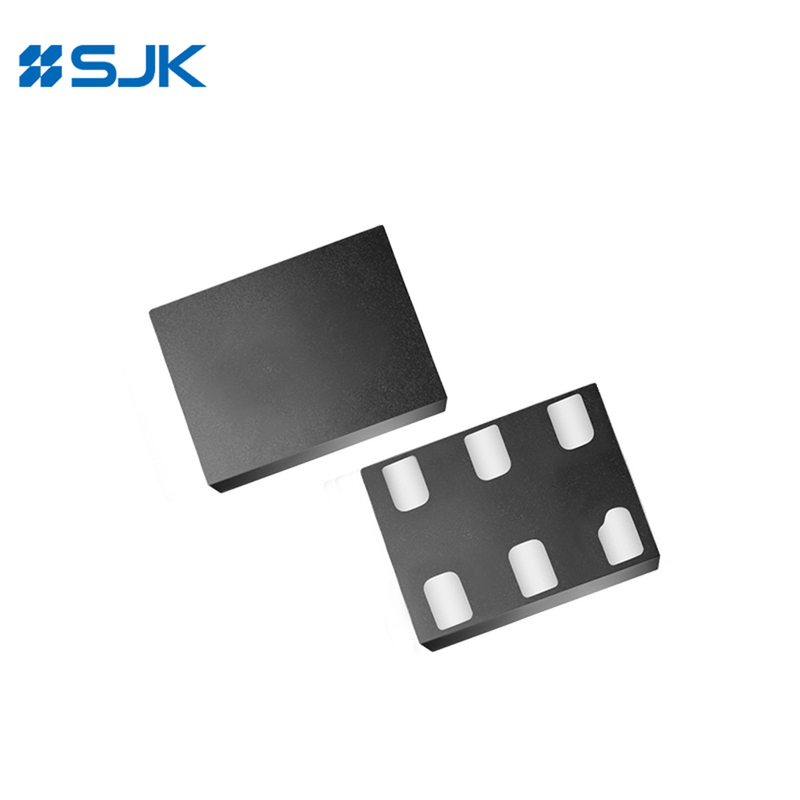

Type	SiT9366 MEMS
Output Type	LVDS, LVPECL
Frequency Range	1~220MHz
Supply Voltage	2.5V/2.8V/3V/3.3V/2.25~3.62V
Frequency Stability	±10ppm~±25ppm, or specify
Operating Temperatuer	-40~+85℃, -40~+105℃
Input Voltage High (VIH)	70% Vdd
Input Voltage Low (VIL)	30% Vdd
Input Pull-up Impedance	250KΩ Μax. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Μin. (Pin1 Logic Low)
Start-up Time	3ms Max.
Resume Time	3.8μs Max.
Duty Cycle	45~55%
Current Consumption	89mA Max.
OE Disable Supply Current	58mA Max.
Differential Output Voltage	450mV Max.
Output Disable Leakage Current	1μΑ Μax.
Standby Current	100μA Max.
VOD Magnitude Change	50mV
Offset Voltage	1.375V Max.
VOS Magnitude Change	50mV Max.
Rise/Fall Time	290ps Max.
OE Enable/Disable Time	3.8ns Max.
RMS Period Jitter	1.6pS Max.
RMS Period Jitter (Random)	0.32pS Max.
Storage Temperature Range	-60~+150℃
Packing Unit	3225: 3000pcs./reel 5032 / 7050: 1000pcs./reel

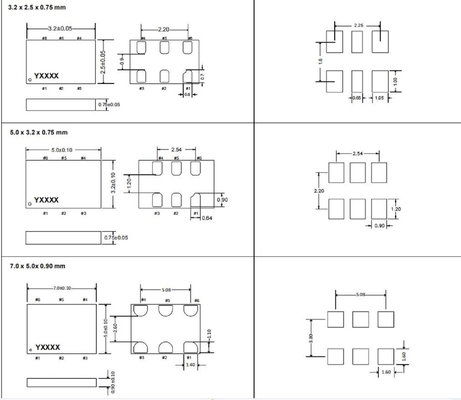

Dimensions [mm]

SJK9121-LVDS-Pin-Fuction

SJK9121-LVDS-Dimensions
