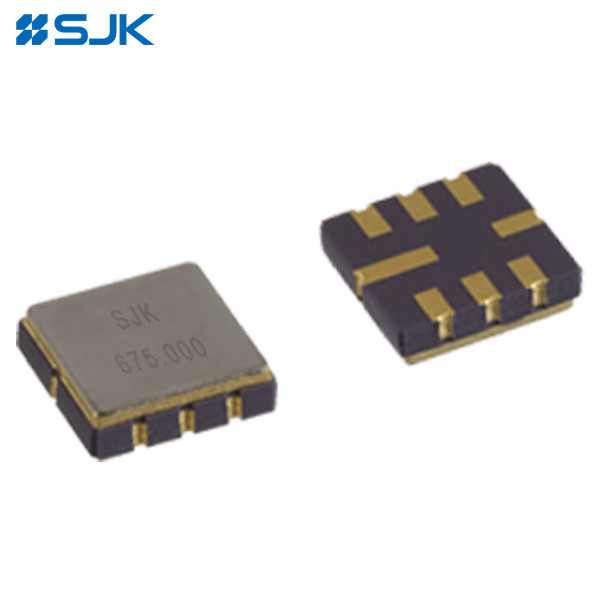

Name: SMD QCC8C SAW Filter 5.0 X 5.0 For Stable And Accurate Frequency Filtering SGS
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: QCC8C SAW filters
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	QCC8C SAW filters
MOQ:	3000 pcs
Price:	negotiable
Packaging Details:	3000pcs
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Frequency Range:

110MHz To 950MHz

Package Code:

QCC8C

Package Type:

SMD SAW Filter

Operating Temperature Range:

-40°C To +85°C

Package Size:

5.0*5.0*1.5mm

Rohs Compliant:

Yes

Supply Ability:

30Kpcs per Month

Highlight:

SMD QCC8C SAW Filter

SAW Filter 5.0 x 5.0

SMD Filter SGS

Product Description

High-Performance SMD QCC8C SAW Filter 5.0*5.0 for Stable and Accurate Frequency Filtering

Features:

Surface mount type, size with 5.0×5.0×1.5 mm.
Ceramic Package for Surface Mounted Technology (SMT)
Frequency range from 110MHz to 950MHz
Low insertion loss
RoHS compatible
Package Code QCC8C
Electrostatic Sensitive Device(ESD)

Electronic Specifications:

Item	Minimum	Typical	Maximum
Frequency Range	110MHz	-	950MHz
Insertion Loss	1.2dB	-	22.5dB
DC Voltage	-	5V	-
Operation Temperature	-20℃	-	+70℃
Operation Temperature	-40℃	-	+85℃
Storage Temperature	-40℃	-	+85℃
Size	5.0×5.0×1.5 mm

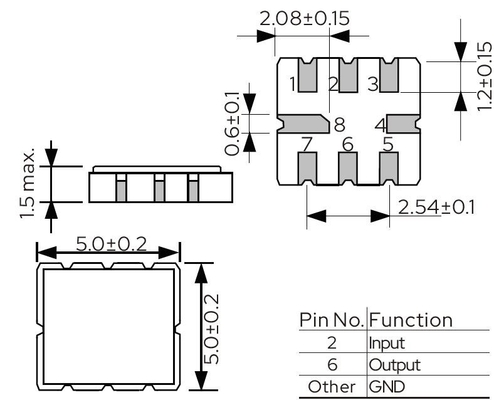

Dimensions:

SMD QCC8C SAW Filter 5.0 X 5.0 For Stable And Accurate Frequency Filtering SGS 0
