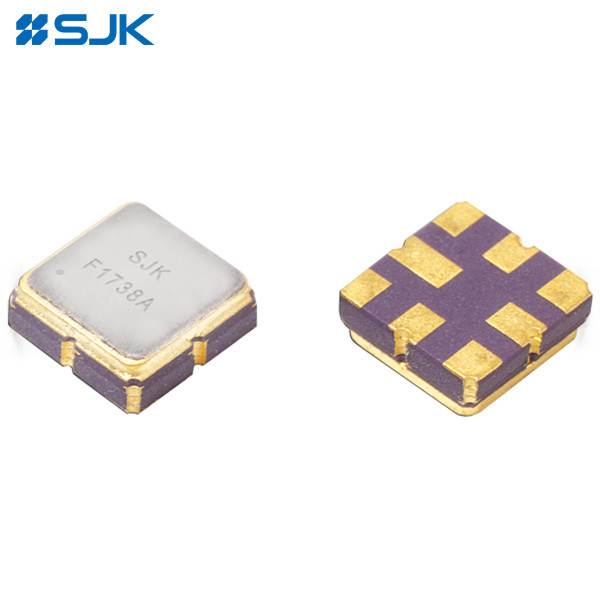

Name: SMD QCC8D SAW Filter 3 X 3 For Various Frequency Ranges
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: QCC8D 3*3 SAW Filters
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	QCC8D 3*3 SAW Filters
MOQ:	3000 pcs.
Price:	Negotiate
Packaging Details:	3000pcs./Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Package Code:

QCC8D

Frequency Range:

110 MHz To 2.4 GHz

Operating Temperature Range:

-40°C To +85°C

Package Type:

SMD

Package Size:

3.0×3.0×1.3 Mm

Pin:

8-Pins

Lead-Free:

Yes

Rohs Compliant:

Yes

Supply Ability:

30Kpcs per Month

Highlight:

SMD QCC8D SAW Filter

SAW Filter 110MHz

custom saw filter 3 x 3

Product Description

High-Performance SMD QCC8D SAW Filter 3*3 for Various Frequency Ranges and Applications

Features:

Low-loss SAW Filter
Single-ended Input, Balanced Output
Package size 3.0×3.0×1.3mm for Surface-mount Package
Frequency range from 110MHz to 2.4GHz
RoHS Compliant
Electrostatic Sensitive Device(ESD)
Package code QCC8D

Electronic Specifications:

Item	QCC8D 3×3 SAW Filters
Frequency Range	110MHz to 2.4GHz
Insertion Loss	1.2dB, 2.0dB, 4.5dB, or specify
Operating Temperature	-40~+85℃
Storage Temperature	-55~+125℃
DC Voltae	5V max.
Package Code	QCC8D
Package size	3.0×3.0×1.3mm

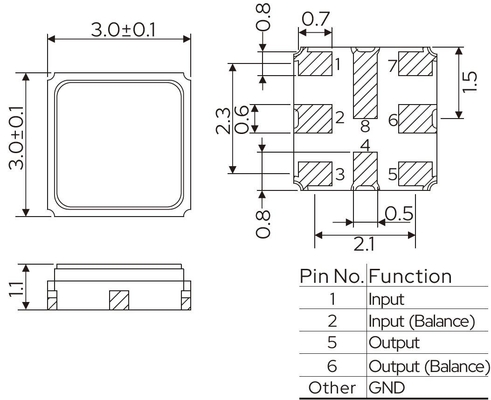

Dimensions:
