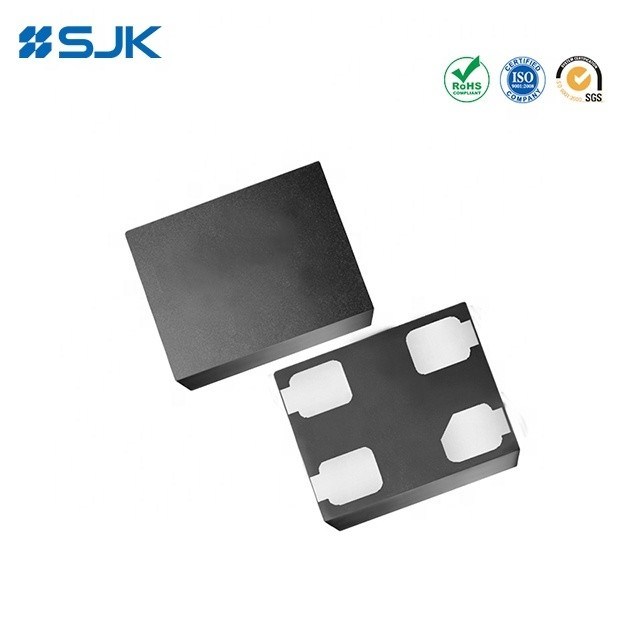

Name: Spread Spectrum MEMS Oscillator 2520 Size LVCMOS 1MHz~141MHz
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK9005AIF72D25DB100.000000
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK9005AIF72D25DB100.000000
MOQ:	3000pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Product Name:

Spread Spectrum MEMS Oscillator

Series:

SJK9005

Alternative Brand:

Sitime

Package:

2520

Frequency Range:

1MHz~141MHz

Output:

LVCMOS

Supply Ability:

8Kpcs per day

Highlight:

Spread Spectrum mems oscillator

mems oscillator 2520

automotive mems oscillator 141MHz

Product Description

Spread Spectrum MEMS Oscillator 2520 Size LVCMOS 1MHz~141MHz

Features

• Any frequency between 1MHz~141MHz accurate to 6 decimal places

• Spread options: Center spread:±0.125~±2%; Down spread: -0.25~-4%

• Low power consumption of 4.0mA typical at 1.8V

•LVCMOS output

• Programmable rise/fall time for EMI reduction: 8 options, 0.25~40ns

• Excellent total frequency stability: ±20ppm

• Application for IP camera, , etc

• RoHS Compliant /Pb Free

Standard Specifications

Output Type		LVCMOS
Load Condition		15pF
Frequency Range		1~141MHz
Supply Voltage		1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 2.25V~3.63V
Frequency Stability		±20ppm,±25ppm,±50ppm
Current Consumption		6.5mA Max.
Standby Current		4.3µA Max.
OE Disable Current		6.5mA Max.
Operating Temperature		-20~+70℃ / -40~+85℃
Duty Cycle		45~55%
Rise/Fall Time		2.5ns Max.
Voltage Vol (Max.)/Voh (Min.)		10% Vcc/90%Vcc
Voltage Vil (Max.)/Vih (Min.)		30% Vcc/70% Vcc
Input Pull-up Impedance		150KΩ Μax. (Pin 1, OE logic high/logic low, or ST logic high) 2MΩ Μin. (Pin 1, STlogic low)
Start-up Time		5ms Max.
Enable/Disable Time		180ns Max.
Resume Time		5ms Max.
Spread Enable Time		4μs Max
Spread Disable Time		50μs Max.
Cycle-to-cycle jitter		22ps Max.
Storage Temperature		-65~+150℃

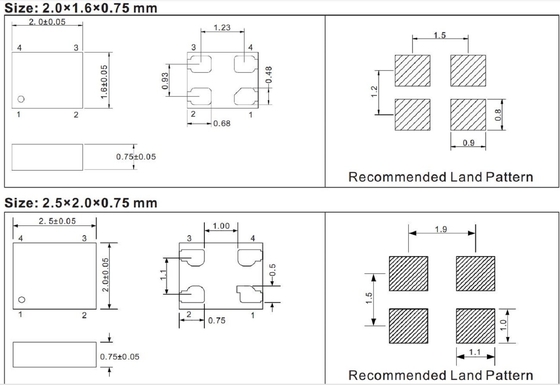

Packing Unit	2016, 2520, 3225 size	3000pcs.Reel
