Name: Compact Size 8N Series SMD 1612 Crystal Oscillator 1MHz To 80MHz For Space Constrained
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 8N Series SMD 1612 Crystal Oscillator
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	8N Series SMD 1612 Crystal Oscillator
MOQ:	3000 pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

8N Series SMD 1612 Crystal Oscillator

Frequency Range:

1MHz To 80MHz

Size:

1.6*1.2*0.5mm

Output Type:

CMOS

Supply Voltage:

1.8V To 3.3V

Function:

Tri-state

Supply Ability:

30K pcs per Month

Highlight:

SMD 1612 smd crystal

smd crystal 80MHz

1 mhz crystal oscillator for Space Constrained

Product Description

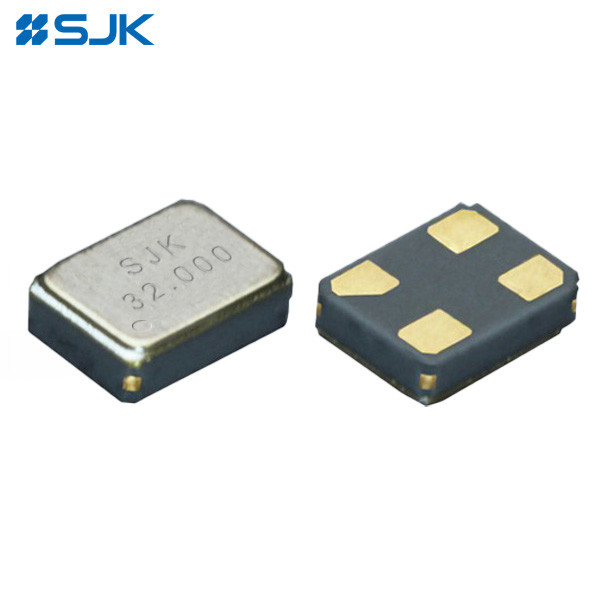

Compact Size 8N Series SMD 1612 Crystal Oscillator 1MHz to 80MHz for Space-Constrained Applications

Features:

1.6*1.2 size, 0.5mm high. Ultra miniature and lightweight SMD crystal oscillator
Tri-state function
Supply voltage: 1.8V~3.3V
CMOS output, available frequency range: 1MHz~80MHz
Low jitter provides for high performance
Application for smart phone, WiLAN, WiMAX, Bluetooth, PC, PC peripherals, Automotive multimedia device, etc
RoHS Compliant /Pb Free

Electronic Specifications:

Item	8N Series SMD 1612 Crystal Oscillator
Output Type	CMOS
Output Load	15pF, or specify
Frequency Range	1MHz To 80MHz
Frequency Stability (All Condition)	±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify
Supply Voltage	1.8V To 3.3V
Current Consumption	4.0mA max.
Stand-by Current	10µA max.
Symmetry	45~55%
0 Level Output Voltage (V_OL)	0.1 Vcc max.
1 Level Output Voltage (V_OH)	0.9 Vcc min.
Rise Time /Fall Time	5.0ns max.
OE 0 Level Input Voltage (V_IL)	0.2 Vcc max.
OE 1 Level Input Voltage (V_IH)	0.8 Vcc min.
Start-up Time	1ms max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Phase Jitter	1ps max.
Package Size	1.61.20.5mm

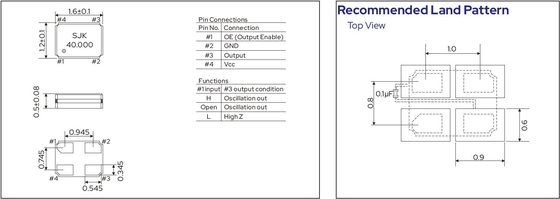

Dimensions:

Compact Size 8N Series SMD 1612 Crystal Oscillator 1MHz To 80MHz For Space Constrained 0
