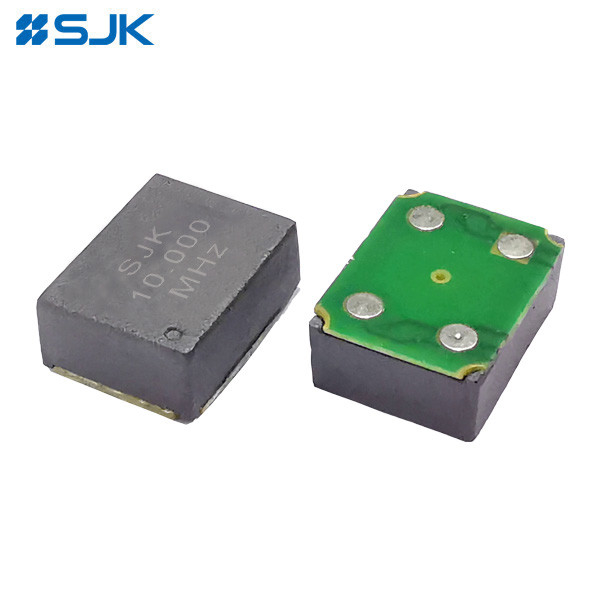

High Stability Miniature 4-pad SMD Package OCXO 1X Series SMD 9*7 Size OCXO for Synthesizer Digital Switch

Features:

Dimension 9.7×7.5×4.1mm, miniature 4-pad SMD package
3.3V, 5V supply voltages
Stratum 3
Output type: Clipped Sine Wave /HCMOS
High frequency range: 10MHz~50MHz
±20ppb stability over -40°C~+85°C
Voltage control (Electronic Frequency Tuning) is available
Application for small cell, Test & Instrumentation, Synthesizer, Digital switch, Portable telecommunication device, etc
RoHS Compliant /Pb Free

Electronic Specifications:

Item		1X Series SMD 9*7 OCXO
Output Waveform		HCMOS		Clipped Sine Wave
Frequency Range		10MHz To 50MHz		10MHz To 50MHz
Supply Voltage		3.3V	5V	3.3V	5V
Intial Calibration Tolerane		± 500ppb (max.)		±500 ppb (max.)
		Vcon=+1.65V	Vcon=+2.5V	Vcon=+1.65V	Vcon=+2.5V
Type Of Crystal Cut Used		IT-Cut Crystal
Frequency Stability	vs Temperature	±10ppb (max.) over -30°C to +70°C
		±20 ppb (max.) over -40°C to +85°C
	vs Supply Voltage	±10ppb max. (Vcc±5%)
	vs Warm-up Time	5 minute max. Within ±0.1 ppm of its reference frequency
	vs Aging	±3.0ppb max./after 30 days ; ±600ppb max./first year ; ±3ppm max. over 10 years.
	vs Reflow	±1.0ppm max., 1 reflow and measured 24 hours afterwards.
Voltage Control On Pin 1(EFC)	Frequency Adjustment Range	±5ppm min.
	Control Voltage Range	+1.65V± 1.65V		+2.5V± 2.5V
	Transfer Function	Positive: Increasing control voltage increases output frequency .
	Input Impedance	100 KΩ min.
	EFC Linearity	±10% max.
Power	Power Dissipation (@25°C)	0.4Watts max. at steady-state; 350mA max. at turn-on
Output	Output Logic High (V_OH)	+2.4V min.	+4.5V min.	-	-
	Output Logic Low (V_OL)	+0.4V max.	+0.5V max.	-	-
	Duty Cycle	45~55%		-
	Load	15pF		10KΩ//10pF±10%
	Output Voltage Level (Peak To Peak)	-	-	0.8Vp-p min.
	Rise Time /Fall Time	7nS max. (20%~80% of waveform)
	Phase Noise Offset [20MHz](Typ.)	10Hz	100Hz	1KHz	10KHz
		-98dBc	-126dBc	-145dBc	-152dBc
Operating Temperature		-20~+70°C, -40~+85°C, or specify
Storage Temperature		-55~+125°C
Package Size (LWH)		9.77.54.1mm
Packing Unit		1000pcs/Reel

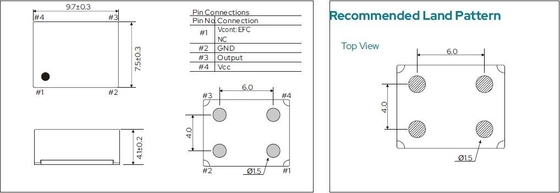

Dimensions:
