Name: SMD 7050 Programmable MEMS LVPECL Oscillator With 6Pads Support 1-220MHz 2.25-3.63V
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SiT9121AC-1C2-33E125.000000T
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SiT9121AC-1C2-33E125.000000T
MOQ:	100pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel or 1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

SJK9121 MEMS Oscillator LVPECL/LVDS Output

Frequency Range:

1~220MHz

Supply Voltage:

2.25~3.63V

Output Type:

LVPECL

Frequency Stability:

±25ppm

Size:

7050

Applications:

10G Ethernet, SATA, Storage, Server, Telecommunications, Base Station, Etc

Package Type:

SMD

Start-Up Time:

5 Ms

Aging:

+/- 3 Ppm Per Year

Package Size:

7.0mm X 5.0mm

Output Enable Function:

Yes

Operating Temperature Range:

-40°C To +85°C

Output Load:

50 Ohms

Rohs Compliant:

Yes

Phase Jitter Rms:

0.5 Ps

Supply Ability:

8Kpcs per day

Highlight:

Programmable MEMS Oscillator

Telecommunications MEMS Oscillator

5ms LVPECL Oscillator

Product Description

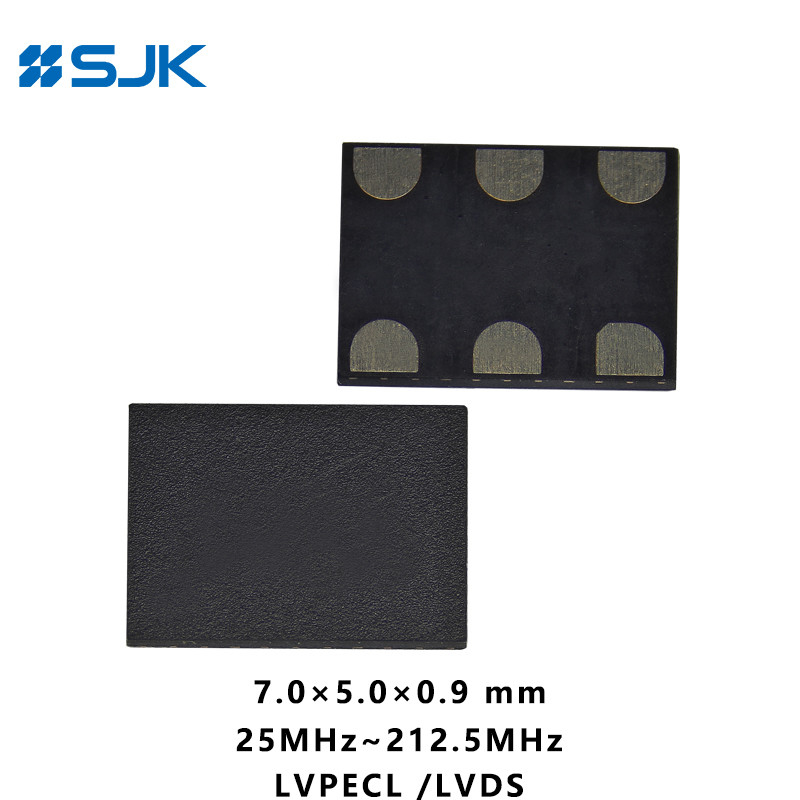

SMD 7050 Programmable MEMS LVPECL Oscillator With 6Pads Support 1-220MHz 2.25-3.63V

Features

Any frequency from 1MHz to 220MHz accurate to 6 decimal places

Excellent frequency stability as low as ±10ppm

0.6ps RMS phase jitter over 12KHz to 20MHz

Industrial and extended commercial temperature range

LVPECL, LVDS output signaling type

Size with 3.2×2.5, 5.0×3.2, 7.0×5.0 mm

Automatic mounting and reflow soldering

Applications: 10G Ethernet, SONET, SATA, SAS, Telecom, Storage, Server, etc

RoHS Compliant / Pb Free

Specifications

Type	SiT9121 MEMS
Output Type	LVPECL, LVDS
Frequency Range	1~220MHz
Supply Voltage	2.5V, 3.3V, 2.25~3.62V
Frequency Stability	±10ppm~±50ppm, or specify
Operating Temperatuer	-20~+70℃, -40~+85℃
Input Voltage High (VIH)	70% Vdd
Input Voltage Low (VIL)	30% Vdd
Input Pull-up Impedance	250KΩ Μax. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Μin. (Pin1 Logic Low)
Start-up Time	10ms Max.
Resume Time	10ms Max.
Duty Cycle	45~55%
Current Consumption	69mA Max.
OE Disable Supply Current	35mA Max.
Output Disable Leakage Current	1μA Max.
Standby Current	100μA Max.
Maximum Output Current	30mA Max.
Output High Voltage (VOH)	Vdd-1.1V
Output Low Voltage (VOL)	Vdd-1.9V
Output Differential Voltage Swing	2.0V Max.
Rise/Fall Time	700ps Max.
OE Enable/Disable Time	115ns Max.
RMS Period Jitter	1.7pS Max.
RMS Period Jitter (Random)	0.85pS Max.
Storage Temperature Range	-60~+150℃
Packing Unit	3225: 3000pcs./reel 5032 / 7050: 1000pcs./reel

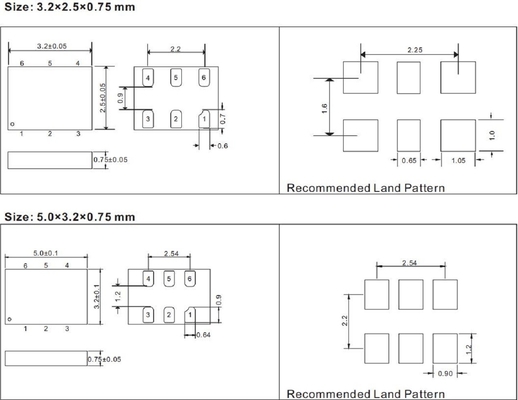

Dimensions [mm]

SJK9121-Pin-Fuction

SJK9121-Dimensions
