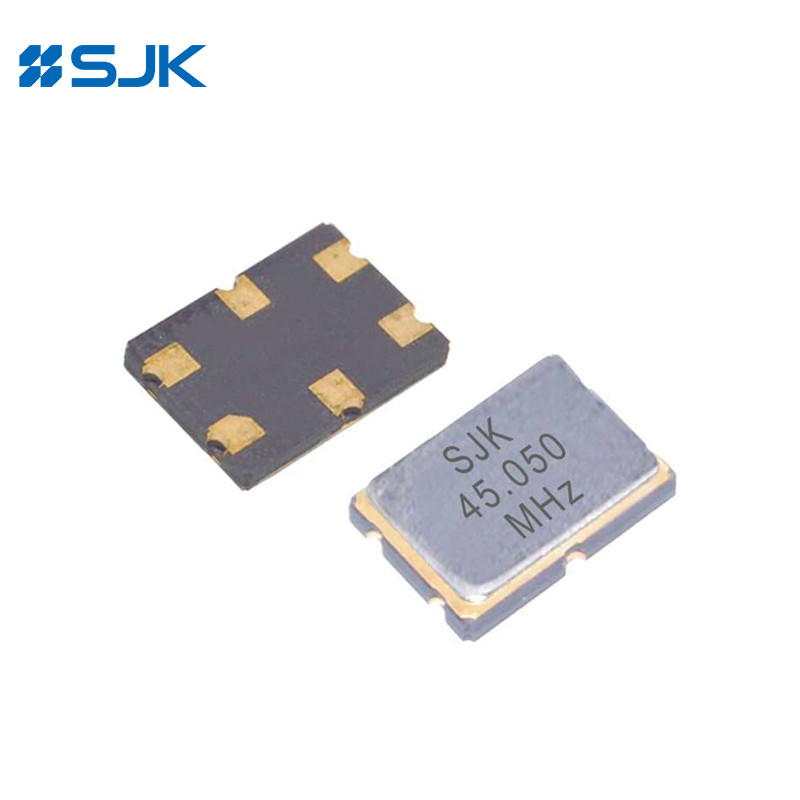

Name: MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-45MQ15BA6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-45MQ15BA6
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

CF Series 3-Pole SMD Filter

Pole:

Nominal Frequency:

45MHz

Pass Bandwidth:

±15KHz Min./3dB

Insertion Loss:

3dB Max.

Size:

7.0*5.0*1.3mm

Applications:

Radio Communications, Cordless Phones, Wireless Communications, Etc

Supply Ability:

70KKpcs/M

Highlight:

MCF monolithic crystal filter

3 Pole monolithic crystal filter

7050 filter crystal 45MHz

Product Description

MCF 3-Pole Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃

Features

Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter

3 Pole function in a single package

Excellent guaranteed attenuation

Excellent shock and vibration resistance

Automatic mounting and reflow soldering

Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc

RoHS Compliant / Pb-Free

Specifications

Type	CF Series 3-Pole SMD Monolithic Filter
Nominal Frequency	45.000MHz
Pole	3
Overtone Order	Fundamental
Pass Bandwidth	±15KHz min./3dB
Stop Bandwidth	±50KHz min./20dB
Ripple	1dB max.
Insertion Loss	4.0dB max.
Guaranteed Attenuation	80dB min.
Terminating Impedance	600Ω//2pF
Operating Temperature	-20~+70℃, or specify
Packing Unit	1000pcs./reel

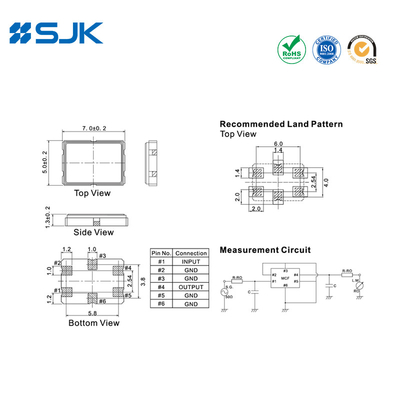

Dimensions [mm]

MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃ 1 +86-755-88352869

MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃ 2 rita@q-crystal.com
