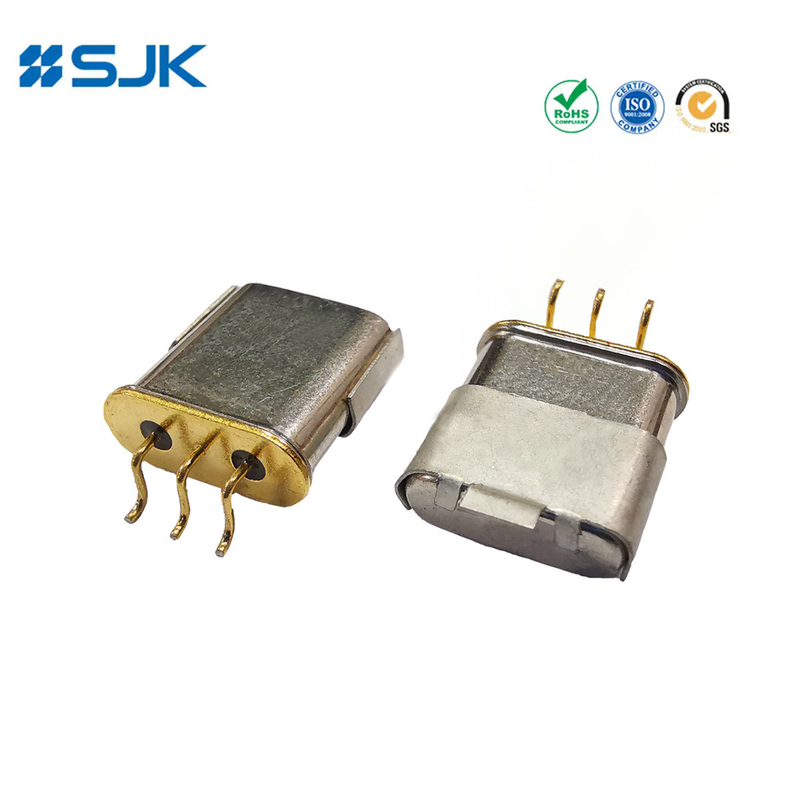

SMD Type 3 Pins 49TMJ Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth

Brand Name:	SJK
Model Number:	10M12D
MOQ:	1000pcs
Price:	negotiable
Packaging Details:	1Kpcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

49TMJ Crystal Filter

Pins:

Nominal Frequency:

10.000MHz

Pass Bandwidth:

±6KHz Min./3dB

Insertion Loss:

3dB Max.

Size:

11.5*4.5mm

Applications:

Radio Communications, Cordless Phones, Wireless Communications, Etc

Supply Ability:

70KKpcs/M

Highlight:

SMD Type monolithic crystal filter

monolithic crystal filter 12.5KHz

49TMJ 10.7 mhz crystal filter

Product Description

SMD Type 3 Pins 49TMJ Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth

Features

Low insertion loss

• High selectivity

• Good inter-modulation and high stability over a wide

temperature range

• Excellent guaranteed attenuation

• Application for VHF & UHF radio, Wireless telemetry, Pagers,

Wireless LAN, Radio communications, Communications, etc,

• RoHS Compliant /Pb Free

Specifications

SMD Type 3 Pins 49TMJ Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth 0

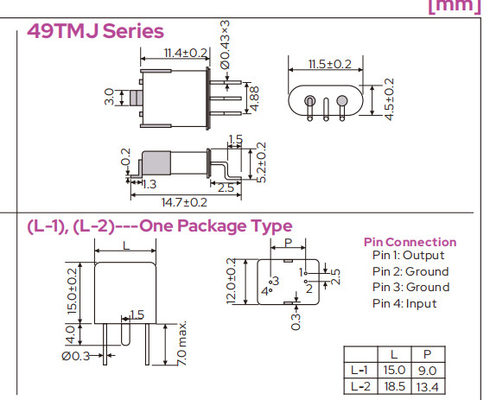

Dimensions [mm]

SMD Type 3 Pins 49TMJ Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth 1

SMD Type 3 Pins 49TMJ Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth 2 +86-755-88352869

SMD Type 3 Pins 49TMJ Crystal Filter 10.7MHz Channel Spacing 12.5KHz 3dB ±3.75KHz Bandwidth 3 rita@q-crystal.com
