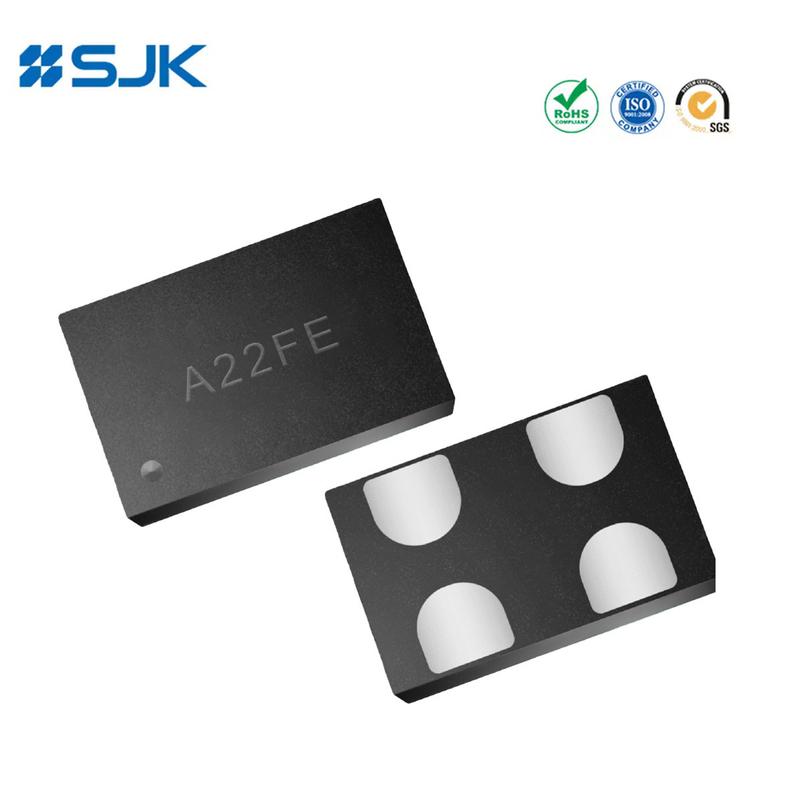

Name: SJK8208 5032 1 To 80MHz, ±10 To ±50 Ppm Oscillator Oscillator For Industrial, Telecom, Storage, Networt
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SiT8208AC -23-25E -75.000000T
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SiT8208AC -23-25E -75.000000T
MOQ:	100pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel or 1Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

SJK8208 Ultra Performance Oscillator

Frequency Range:

1-80MHz

Output Type:

LVCMOS/LVTTL Compatible Output

Frequency Stability:

±10 Ppm

Size:

5.0*3.2mm

Applications:

Industrial, Telecom, Storage, Networking

Working Temperature Range:

-40°C To +85°C

Enable Function:

Yes

Supply Voltage:

1.8V,2.5V,2.8V,3.3V

Supply Current:

1.5 μA

Output Load:

15 PF

Package Type:

SOT23-5

Aging:

±3 Ppm/year

Supply Ability:

8Kpcs per day

Highlight:

5032 mems crystal oscillator

mems crystal oscillator 1MHz

mems osc 80MHz

Product Description

SJK8208 5032 1 To 80 MHz, ±10 To ±50 Ppm Oscillator High-Performance Oscillator For Industrial, Telecom, Storage, Networking

Features

Any frequency between 1 and 80 MHz accurate to 6 decimal places

100% pin-to-pin drop-in replacement to quartz-based oscillators

Ultra low phase jitter: 0.5 ps (12 kHz to 20 MHz)

Frequency stability as low as ±10 PPM

Industrial or extended commercial temperature range

LVCMOS/LVTTL compatible output

Standard 4-pin packages: 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm x mm

Instant samples with Time Machine II and field programmable oscillators

Outstanding silicon reliability of 2 FIT or 500 million hour MTBF

Pb-free, RoHS and REACH compliant

Ultra short lead time

Applications

SATA, SAS, Ethernet, PCI Express, video, WiFi

Computing, storage, networking, telecom, industrial control

Specifications

Type	SJK8208 Ultra Performance Oscillator
Output Type	LVCMOS/LVTTL compatible
Frequency Range	1-80MHz
Supply Voltage	1.8V,2.5V,2.8V,3.3V
Frequency Stability	±10ppm, ±50ppm
Current Consumption	33mA Max.
Standby Current	70mA Max.
OE Disable Current	31mA Max.
Operating Temperature	-40~+85℃
Duty Cycle	45~55%
Rise/Fall Time	2.0ns Max.
Voltage Vol (Max.) / Voh (Min.)	10%Vcc / 90%Vcc
Voltage Vil (Max.) / Vih (Min.)	30%Vcc / 70%Vcc
Input Pull-up Impedance	150KΩ Max. (Pin1 Logic High)
Input Pull-up Impedance	2MΩ Min. (Pin1 Logic Low)
Start-up Time	5ms Max.
Enable/Disable Time	122ns Max.
Resume Time	5ms Max.
RMS Period Jitter	4ps Max.
Peak to Peak Period Jitter	30ps Max.
RMS Phase Jitter (12KHz~20MHz)	2ps Max.
Storage Temperature	-60~+150℃
Packing Units	2520 / 3225: 3000pcs/reel 5032 / 7050: 1000pcs/reel

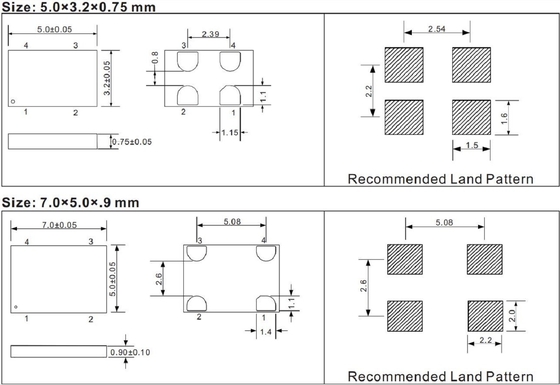

Dimensions [mm]
