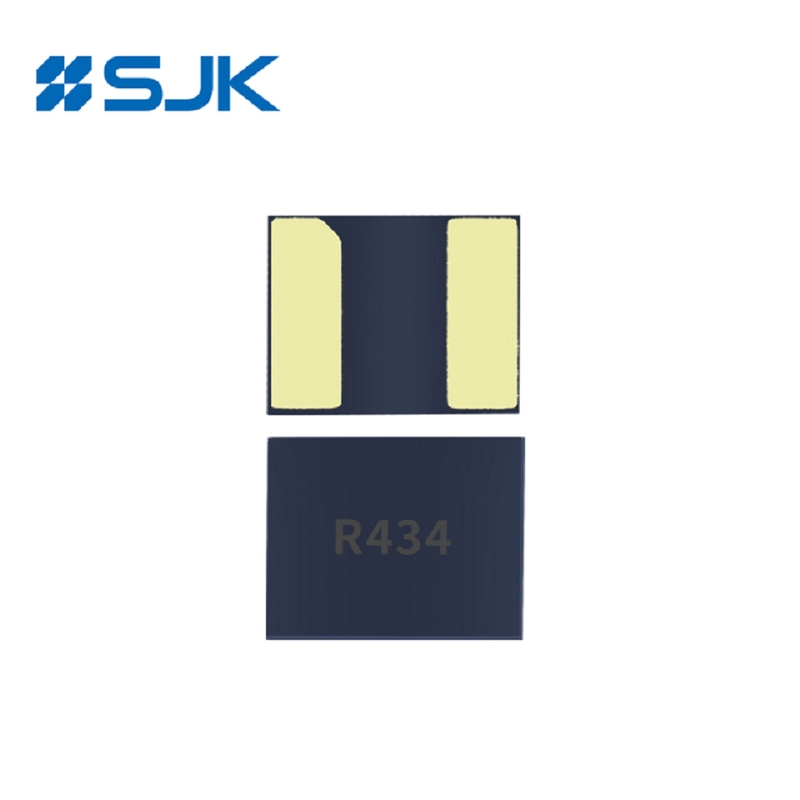

Name: 433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 433.92MHz One-Port SAW Resonators
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	433.92MHz One-Port SAW Resonators
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Nominal Frequency:

433.92MHz

Frequency Tolerance:

+/-150KHz

Insertion Loss:

1.3dB Typ.

Quality Factor:

12000

Turnover Temperature:

25℃ Typ.

Frequency Temperature Coefficient:

0.032ppm/℃

DC Insulation Resistance Between Any Two Pins:

1.0MΩ Min.

Operating Temperature Range:

-40°C To +85°C

Size:

1.8x1.4x0.9mm

Rohs Compliant:

Yes

Supply Ability:

30K pcs per Month

Highlight:

High Stability SAW Resonator

433.92MHz SAW Resonator

Remote Control Devices SAW Resonator

Product Description

433.92MHz One Port SAW Resonator SMD1814 Size High Stability and Reliability Applicationfor Remote Control etc

Features:

One-port Resonator
CSP Package for Surface Mounted Technology (SMT)
RoHS compatible
Package size 1.80x1.40x0.90mm
Electrostatic Sensitive Device(ESD)

Specifications:

Item			Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	fc	433.770	433.920	434.070	MHz
Center Frequency	Tolerance from 433.920MHz	△fc		±150		KHz
Insertion Loss(min)		IL		1.3	2.2	dB
Quality Factor	Unloaded Q	Q_U		12000
Quality Factor	50Ω Loaded Q	Q_L		1500
Temperature Stability	Turnover Temperature	T₀	10	25	40	℃
	Turnover Frequency	f₀		f_c
	Frequency Temperature Coefficient	FTC		0.032		ppm/℃
Frequency Aging	Absolute Value during the First Year	\|fA\|		≤10		ppm/yr
DC Insulation Resistance between Any Two Pins			1.0			MΩ
RF Equivalent RLC Model	Motional Resistance	R_M		12.196		Ω
	Motional Inductance	L_M		183.82		μH
	Motional Capacitance	C_M		0.733		fF
	Static Capacitance	C₀		2.23		pF

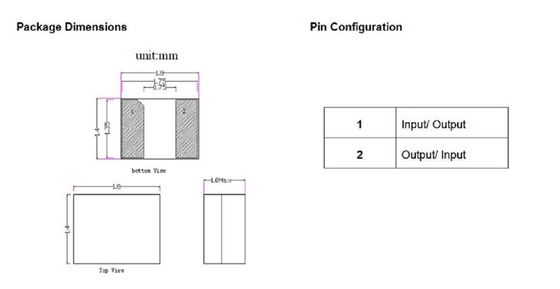

Dimensions And Soldering Plattern:

433.92MHz-One-Port-SAW-Resonator
