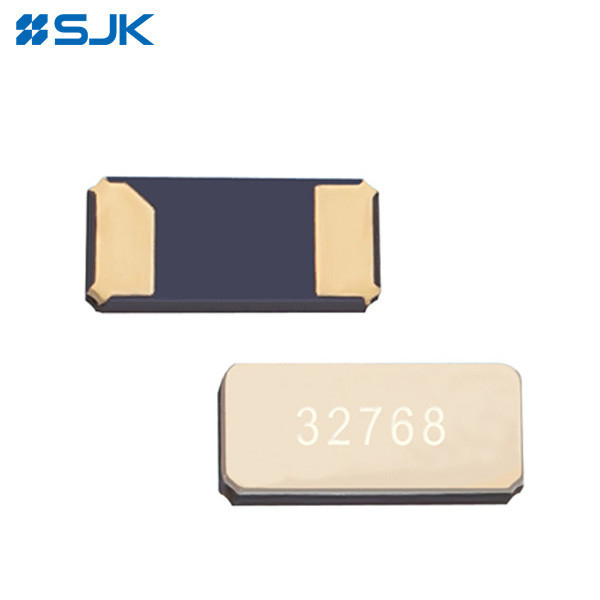

SJK-7L 32.768kHz 3.2*1.5 SMD Tuning Fork Crystal Resonators with High Precison and Reliability

Features:

3.2*1.5 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.7mm
A ceramic package providing high precision and reliability
32.768kHz nominal frequency output
Excellent heat resistance and environmental characteristics
RoHS Comlipiant. Meets the re-flow profiling requirements using lead-free solder
Application for mobile communications, OA, AV, Wack clock, Digital appliance, and more

Specifications:

Parameters	Sym.	Electrical Spec.				Notes
Parameters	Sym.	Min.	Typ.	Max.	Units	Notes
Item /Type		*SJK-7L Series 32.768kHz 3.21.5 SMD Crystal Unit**				-
Nominal Frequency	f0	32.768			kHz	-
Frequency Tolerance	-	±20			ppm	at 25 ℃
Driver Level	DL	-	0.1	1.0	uW	-
Load Capacitance	CL	9			pF	-
Series Resistance	-	-	-	70	KΩ	-
Turnover Temperature	-	20	25	30	℃	at 25 ℃ ±5℃
Parabolic coefficent	-	-	-	-0.04*10^-6	℃2	-
Storage Temperature	-	55	-	125	℃	-
Operating Temperature	-	40	-	85	℃	-
Shunt Capacitance	-	-	1.5	-	pF	-
Motional Capacitance	C0	-	6.7	-	ff	-
Insulation Resistance	C1	500	-	-	MΩ	at DC 100V±15V
Aging	-	±3			ppm	1st Year

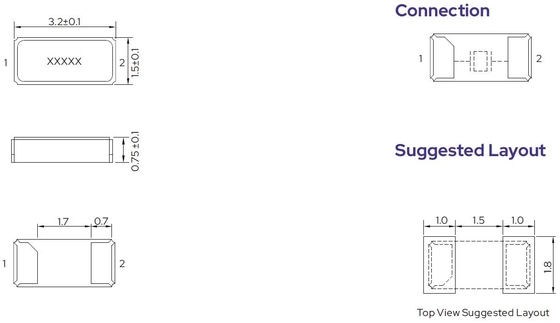

Dimensions and Land Pattern:
