Name: 2520 TCXO 26MHz 1.8V-3.3V Clipped Sine Wave Output ±0.5ppm -40- 85C 4 Pads Pad
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7Q26000MXX04K0A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7Q26000MXX04K0A6
MOQ:	3000pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

7Q Series SMD TCXO

Frequency Range:

26.000MHz

Supply Voltage:

1.8V-3.3V

Output Type:

Clipped Sine Wave

Size:

2.5*2.0*0.85mm

Frequency Stability:

±0.5ppm~±1.0ppm

Applications:

GPS, Wireless Communications, Mobile Phone, Etc.

Type:

SMD

Package:

2520

Pad:

4 Pads

Supply Ability:

70KKpcs/M

Highlight:

2520 TCXO 4 Pads Pad

2520 TCXO 1.8V-3.3V

2520 TCXO 26MHz

Product Description

SMD 2520 TCXO 26MHz 1.8V-3.3V Clipped Sine Wave Output ±0.5ppm -40~+85℃

Features

LVCMOS output logic, frequency range from 10MHz to 60MHz

2520 size, 0.80mm high SMD TCXO /VC-TCXO

Low voltage operations: 1.8V, 2.5V, 2.8V, 3.3V

Frequency stability: ±2ppm~±5ppm

3-state function

Automatic mounting and reflow soldering

Applications: Mobile Phone, Wireless Communications, IoT, GPS, WLAN, and more

RoHS Compliant & Pb-Free

Specifications

Type		7Q Series SMD TCXO
Output Type		CMOS
Output Load		15pF
Supply Voltage		1.8~3.3V
Frequency Range		10~60MHz
Supply Current		10mA Max.
Output Level		0.1Vcc /0.9Vcc
Frequency Stability	Tolerance	±2.0ppm Max. (after 2 reflows )
	vs Temperature	±2ppm~±5ppm
	vs Supply Voltage	±0.2ppm Max.	±0.2ppm Max.
	vs Aging	±1.0ppm Max./Year
Duty Cycle		45~55%
Rise /Fall Time		8ns Max.
Start-up Time		5ms Max.
Operating Temperature		-40~+85℃, or specify
Phase Noise @26MHz	100Hz	-110dBc/Hz
	1KHz	-130dBc/Hz
	10KHz	-145dBc/Hz
Packing Unit		3000pcs./Reel

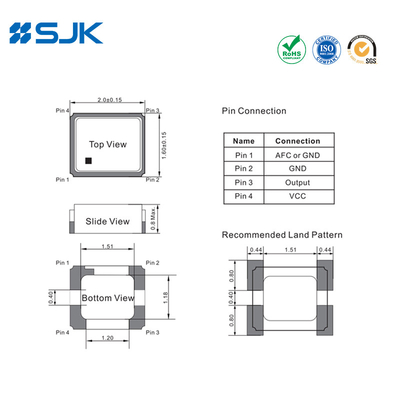

Dimensions [mm]
