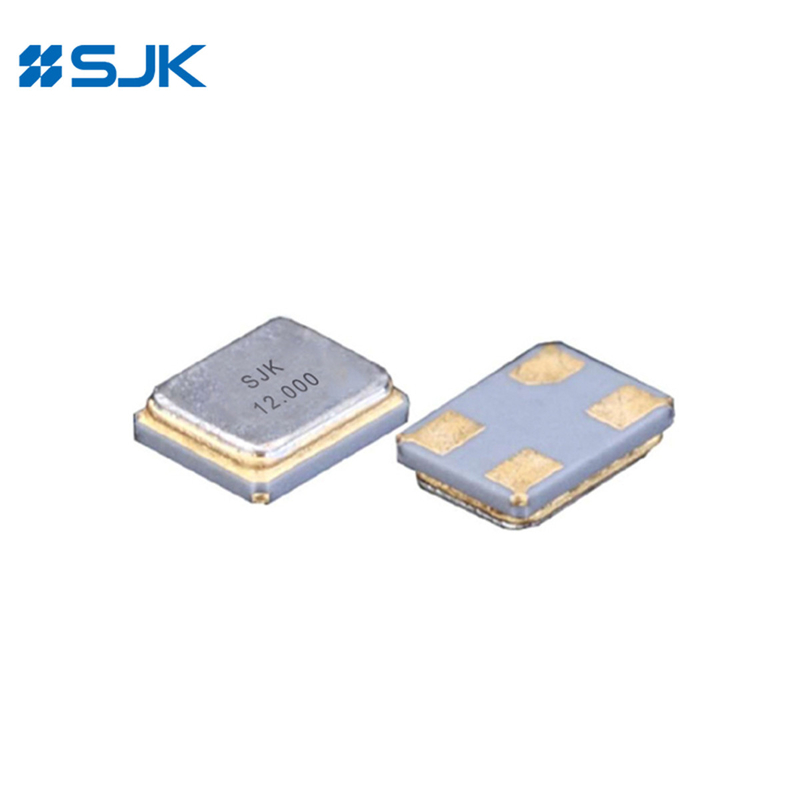

Name: 2016 27.000MHz 10pF Crystal Resonator With ±10ppm -40~+105℃ ±30ppm For Automotive Application
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7F27000MAZ1530A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7F27000MAZ1530A6
MOQ:	3000pcs
Price:	Negotiate
Packaging Details:	3000pcs /Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Type:

SMD 2016 Crystal Resonator

Frequency Range:

27.000MHz

Size:

2.0*1.6*0.5mm

Overtone Order:

Fundamental

Load Capacitnace:

10pF

Greent Product:

RoHS Compliant, Pb-Free

Working Temperature:

-40~+105℃

Frequency Tolerance:

±10ppm

Frequency Stability:

±30ppm

Storage Temperature Range:

-55~+125℃

Supply Ability:

70KK pcs per Month

Highlight:

Automotive Application Crystal Resonator

2016 27.000MHz Crystal Resonator

10pF Crystal Resonator

Product Description

7F Series SMD2016 Crystal Unit 16MHz To 96MHz High Precision And High Reliability for Better Performance

Features:

2016 size ultra miniature and lightweight SMD crystal units with low profile of 0.5mm
Excellent heat resistance, High precision and high reliability
Frequency range from 16MHz To 96MHz
High reliable environmental performance
Extremely good for reducing EMI effect
Provide clean and stable reference clock to a wide variety of ICs
RoHS and REACH Compliant , Pb-free
Applications for Wireless Communication, CPE, Router, Ethernet Switch, Gateway, Set-Top Box, Notebook, Tablet, Server,Industry control, etc.

Electronic Specifications:

Item	7F Series SMD2016 Crystal Unit
Frequency Range	16MHz~20MHz	20MHz~30MHz	30MHz~60MHz	76.8MHz,80MHz, 96MHz
Overtone Order	Fundamental
Frequency Tolerance	±10ppm, ±20ppm, ±30ppm, or specify
Frequency Stability Over Temperature	±10ppm, ±20ppm, ±30ppm, or specify
Drive Level	100µW typ., 300µW max.
Load Capacitance	6~20pF, or specify
Series Resistance	200Ω max.	100Ω max.	80Ω max.	30Ω max.
Operating Temperature	-20~+70°C, -40~+85°C, or specify
Storage Temperature	-55~+125°C
Aging	±3ppm/Year max.
Package Size	2.01.60.5mm
Packing Unit	3000pcs/Reel

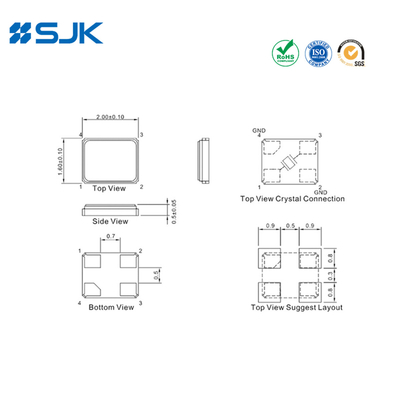

Dimensions:

SMD2016-Crystal-Unit-Dimension
