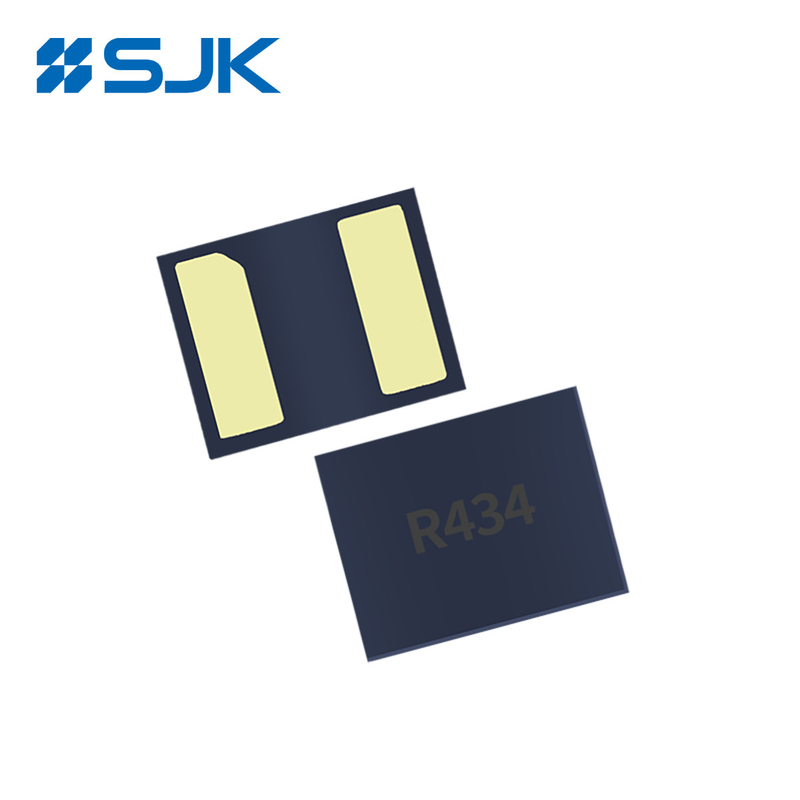

Name: SMD 2016 SAW Resonator 2 Pin 304.25MHz ±100KHz for Remote Control Security Alarm
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-SR304.25-2016-A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-SR304.25-2016-A6
MOQ:	4000pcs
Price:	negotiable
Packaging Details:	4Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

2016 SAW Resonator

Frequency:

304.25MHz

Frequency Tolerance:

+/- 100kHz

Insertion Loss:

2.5dB

Size:

2.0x1.6x0.9mm

Pins:

2 Pins

Package:

2016

Operating Temperature Range:

-20°C To +80°C

Aging:

+/- 3ppm/year

Number Of Pins:

Package Type:

SMD

Rohs Compliant:

Yes

Input Power:

10mW

Frequency Range:

304.25MHz

Temperature Stability:

+/- 50ppm

Package Size:

2016

Supply Ability:

30Kpcs per Month

Highlight:

304.25MHz SMD 2016 SAW Resonator

2 Pin SMD 2016 SAW Resonator

Product Description

2016 2 Pins SAW Resonator With 304.25MHz ±100KHz

Features

1-Port SAW Resonator

CSP Package for SMT

Package Size 2.0x1.6x0.9 mm

Electrostatic Sensitive Device

Application: Automotive Electronics, Remote Control, Security Alarm, etc.

RoHS Compliant & Pb Free

Specifications

Item		Minimum	Typical	Maximum	Unit
Center Frequency	Absolute Frequency	315, 433.92, or other frequency			MHz
Center Frequency	Frequency Tolerance		±100		KHz
Insertion Loss (Min.)			1.3	2.2	dB
Quality Factor	Unloaded Q		12000
Quality Factor	50Ω loaded Q		1500
Temperature Stability	Turnover Temperature	10	25	40	℃
	Turnover Frequency		Fc
	Frequency Temperature Coefficient		0.032		ppm/℃
Frequency Aging	Absolute Value During The First Year		≦10		ppm/yr
DC Insulation Resistance Between Any Two Pins		1.0			MΩ
RF Equivalent RLC Model	Motional Resistance		12.196	18	Ω
	Motional Inductance		183.82	110.2	μH
	Motional Capacitance		0.733		fF
	Static Capacitance	1.45	2.23	2.05	pF
Operating Temperature		-40		+85	℃
Storage Temperature		-55		125	℃
DC Voltage			10		V

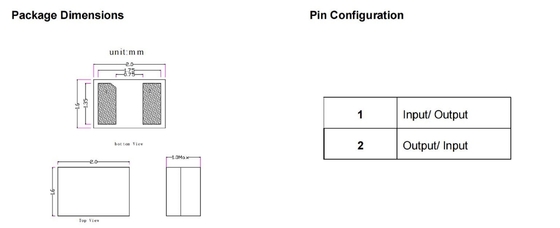

Dimensions [mm]
