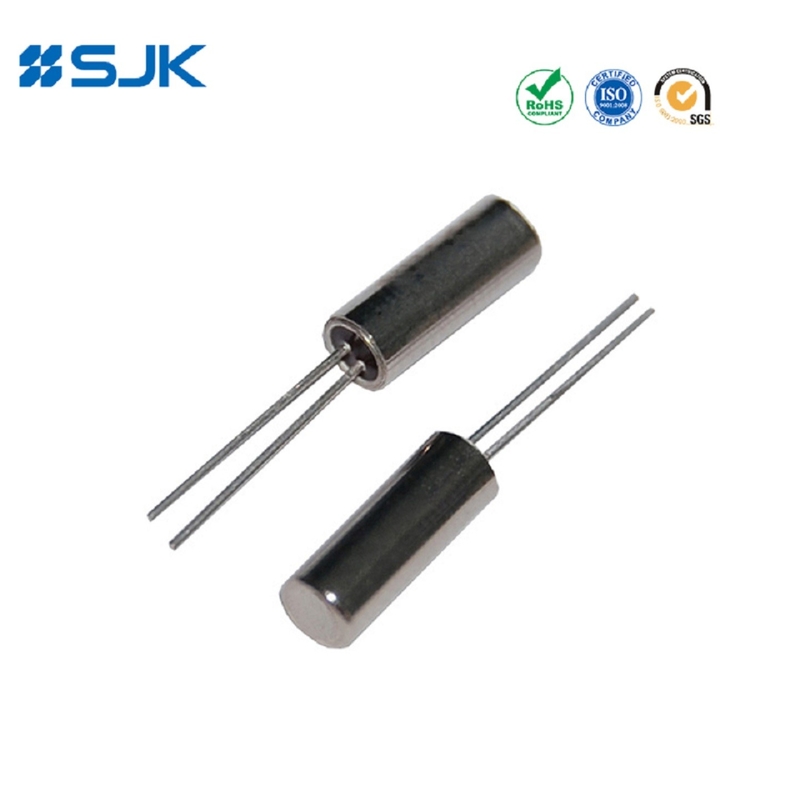

Name: 1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: 1TD125DHNS004 ,1TC125DFNS019,CFS206,DT-26,DT-38
Price: 0.10 USD
Availability: InStock

Brand Name:	SJK
Model Number:	1TD125DHNS004 ,1TC125DFNS019,CFS206,DT-26,DT-38
MOQ:	1000 pieces
Price:	$0.10 - $0.40/pieces
Packaging Details:	Bulk pack for DIP products, Tape and Real for SMD product

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

REACH, ROHS

Type:

Tuning Fork Crystal

Supplier Type:

Original Manufacturer, OEM

Package Type:

SMD

Frequency:

32.768KHz

Frequency Stability:

±20ppm Or Specify

Frequency Tolerance:

±20ppm Or Specify

Operating Temperature:

-40°C ~ 85°C

Build-in Load Capacitance:

6pF,12.5pFor Specify

Impedance:

50K Ohms

Shunt Capacitance:

1.5pF Typ

Drive Level:

1.0uW Max

Load Capacitance:

6pF,12.5pF

Aging (at 25℃):

±3ppm At First Year

Storage Temperature Range:

-55℃ ~125℃

Package:

1000pcs

Size:

2*6/3*8mm

Turnover Temperature:

±25℃±5℃

Description:

Tuning Fork Crystal Resonator

P/n:

DT-26

P/N:

CFS206

Supply Ability:

500000 Piece/Pieces per Month

Product Description

Product info

6K Series kHz Crystal Unit

Model: 6K Series (6K6/6K8 Series kHz Crystal Unit)
Frequency range: 32.768kHz (30~1350kHz)
Frequency tolerance: ±20ppm
Size: 2×6/3×8mm
Load capacitance: 12.5pF, or specify
Applications: Smart meters, IoT,Consumer products, PC, etc

Features Of 6K Series kHz Crystal Unit:

Tuning fork crystal of lead formed heatresistance

Frequency range from 30kHz to 1350kHz

Small size with 2.0×6.0 and 3.0×8.0 mm

High reliable environmental performance

Low power consuming

Application for Clock, Smart meters, IoT, Consumer products, PC, MCU, etc

RoHS Compliant

Specifications

1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70 0

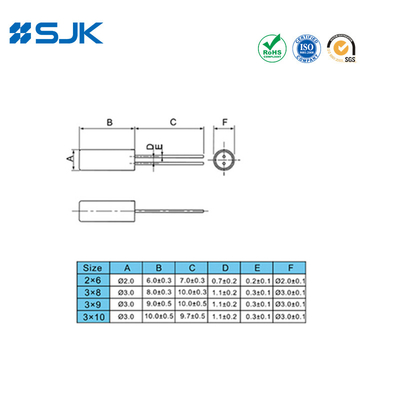

Dimensions[mm]

1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70 1

SJK Company Info

1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70 2

1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70 3

1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70 4

FAQ

1TC125DFNS019 Thru-Hole Crystal resonator 2*6mm or 3*8mm 32.768KHz 12.5pF ±20ppm -20~+70 11

Contact us Today

Sales: Rita Lee
Web: www.q-crystal.com
Mob:-+86 8300706104

Wechat: xzdy-6688
