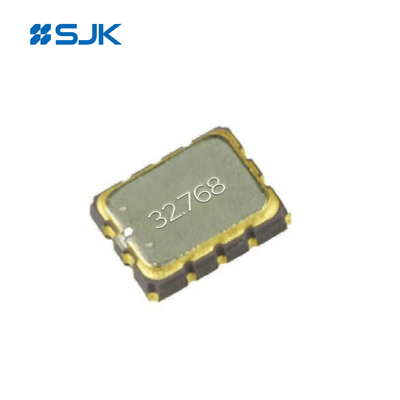

Name: 3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-7T32768KXX05A0A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-7T32768KXX05A0A6
MOQ:	2Kpcs/Reel
Price:	negotiable
Packaging Details:	Type & Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, REACH, SGS

Product Type:

TCXO

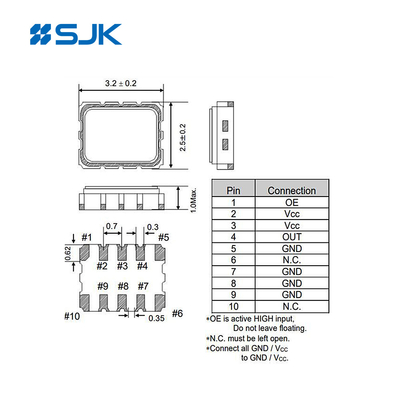

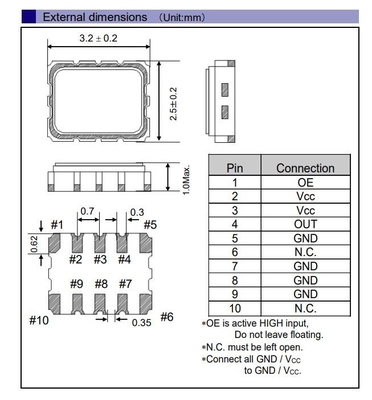

Package:

3225

Size:

3.5*2.5mm

Frequency:

32.768KHz

Pads:

10 Pin

Voltage:

1.5V-5.5V

Stability:

±8ppm@-40~+105℃

Working Temperature Range:

-40~+105℃

Storage Temperature Range:

-55~+125℃

Output:

CMOS

Pin To Pin Alternative:

TG-3541CE

Supply Ability:

100Kpcs/Month

Product Description

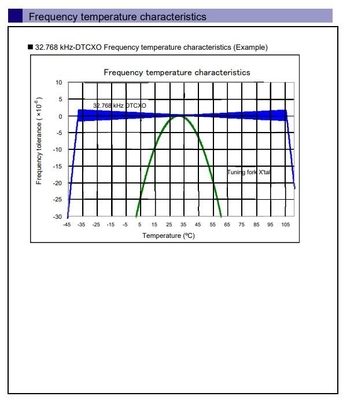

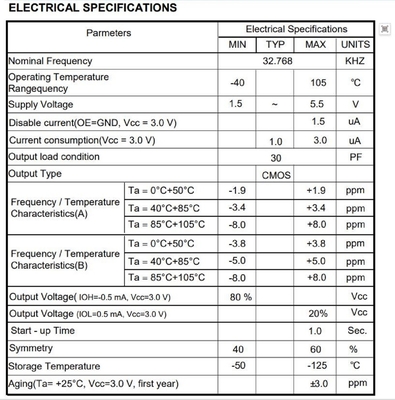

3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃

3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃ 0

Shenzhen Crystal Technology Industrial Co. Ltd

Focusing on crystal and oscillator R&D and production for 31 years.

Exporting to 50 countries, Monthly capacity: up to 77 million pcs.

Operating since 1989

Established in 1989, Shenzhen Crystal Technology Industrial is a professional manufacturer and exporter of quartz crystals, SMDXTAL, SMD CXO, SMD VCXO and ceramic resonators (filters/SMD) under SJK Brand. Our products are widely applied in the fields of communication, computers, TV sets and acoustic equipment. Big companies such as Flextronics, SANMINA-SCI and APC source from us.

Having Modern Facilities and Sales Network

Our operation runs according to ISO 9001:2000 and ISO 14000 standards. We have advanced production facilities and technologies imported from Japan and the US. Our production capacity of 80 million pieces per year is made possible with the support of our 510 workers. Moreover, we have 18 QC auditors with five years of experience who ensure our products compliant with RoHS and SGS standards. Our MOQ is 1,000 pieces.

Our Main Customers:

FLEXTRONICES, SANMINA-SCI, KENWOOD, FOXCONN, SANYO...

rita@q-crystal.com

Wechat: xzdy-6688

Mob: +86-18300706104

Products Details

Home > Products >

TCXO/VC-TCXO

3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃

All Category

3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃

Brand Name:	SJK
Model Number:	SJK-7T32768KXX05A0A6
MOQ:	2Kpcs/Reel
Price:	negotiable
Packaging Details:	Type & Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Certification:

RoHS, REACH, SGS

Model Number:

SJK-7T32768KXX05A0A6

Product Type:

TCXO

Package:

3225

Size:

3.5*2.5mm

Frequency:

32.768KHz

Pads:

10 Pin

Voltage:

1.5V-5.5V

Stability:

±8ppm@-40~+105℃

Working Temperature Range:

-40~+105℃

Storage Temperature Range:

-55~+125℃

Output:

CMOS

Pin To Pin Alternative:

TG-3541CE

Minimum Order Quantity:

2Kpcs/Reel

Price:

negotiable

Packaging Details:

Type & Reel

Delivery Time:

8-12 wks

Payment Terms:

T/T

Supply Ability:

100Kpcs/Month

Product Description

3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃

3225 10PADS 32.768KHz TCXO With 1.5-5.5V CMOS ±8ppm-40~+105℃ 0
