Name: Through Hole 4 Pin 25*25mm OCXO Support 10MHz, 100Mz 5~100MHz 5.0V Or 12V ±100ppb Or ±20ppb For Telecommunication
Brand: Shenzhen Crystal Technology Industrial Co., Ltd.
SKU: SJK-9MA0000M5Z04J1A6 OR SJK-9MA0000MAB04J1A6
Price: 1,499.05 USD
Availability: InStock

Brand Name:	SJK
Model Number:	SJK-9MA0000M5Z04J1A6 OR SJK-9MA0000MAB04J1A6
MOQ:	10pcs
Price:	negotiable
Packaging Details:	100pcs/Bag
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

SGS, RoHS, REACH

Model:

9M Series DIP OCXO

Frequency Range:

5~100MHz

Supply Voltage:

3.3V/5.0V/12V

Frequency Tolerance:

100ppb

Size:

25*25*12mm

Applications:

Base Station, Digital Switch, Reference Timing Circuit, Etc

SMD Or DIP:

Through Hole

Popular Frequency:

10.000MHz, 100MHz

Stability:

±0.05ppm

Working Temperature Range:

-20~+70℃，-40~+85℃

Supply Ability:

70KKpcs/M

Product Description

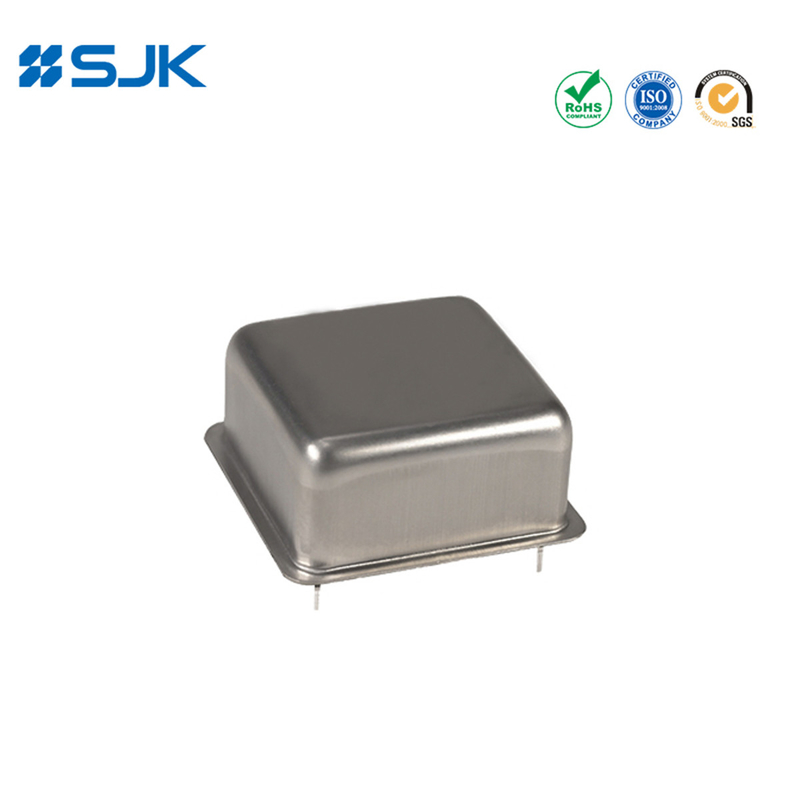

Thru-Hole 25*25*12mm OCXO 5~100MHz 5.0V Or 12V ±100ppb -30~+70℃ For Reference Timing Circuit

Features

OCXO (Oven Controlled Crystal Oscillator)

Typical 25.4×25.4×12.7mm DIP Thru-hole OCXO

Frequency range from 5MHz to 100MHz

±3ppb frequency stability over -40~+85℃

Stratum 3 (Overall ±0.3ppm including 10 years aging)

Very fast warm-up and accurate stability

Applications: Base Station, Digital Switch, Test Equipment, Measuring Equipment, SDH, SONET, etc

RoHS Compliant & Pb-Free

Specifications

Type		9M Series DIP OCXO
Output Type		LVTTL/Sine wave
Output Load		15pF, or specify
Output Wave Form		Rectangular
Supply Voltage		3.3V/5.0V	12V
Frequency Range		5~40MHz	10~100MHz
Operating Temperature		-40~+85℃, or spcify
Frequency Stability	Frequency Tolerance	±10ppb Max.
	vs. Operating Temperature	±3ppb~±10ppb
	vs. Supply Voltage	±5ppb Max. (±5 Change)
	vs. Load	±5ppb Max. (±10 Change)
	vs Aging	±0.5ppb /Daily, ±50ppb/Year, ±0.3ppm/10 years
Voltage Vol (Max.) /Voh (Min.)		0.1Vcc/0.9Vcc
Duty Cycle		45~55%
Spurious		-60dBc
Warm-up		±10ppb (In 2 minutes @+25, referenced to 1 hour)
Power Consumption (Steady state)		1.3W Max.
Frequency Adjustment Range		±0.5ppm (+1.65V±1.65V/+2.5V±2.5V/+5V±5)
Phase Noise @20MHz	@10Hz	-120dBc/Hz
	@100Hz	-135dBc/Hz
	@1KHz	-145dBc/Hz
	@10KHz	-150dBc/Hz
Packing Unit		100pcs.

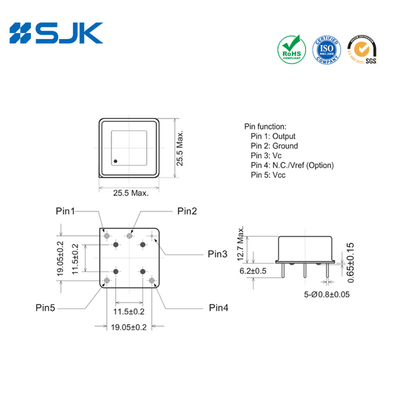

Dimensions [mm]
