SMD 3225 TCXO With Clipped Sinewave Output 32.000MHz 1.8-3.3V

Brand Name:	SJK
MOQ:	3000pcs
Price:	negotiable
Packaging Details:	3Kpcs/Reel
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SJK

Certification:

SGS, RoHS, REACH

Model:

7T Series SMD TCXO / VC-TCXO

Frequency Range:

10~52MHz

Supply Voltage:

1.8V~3.3V

Frequency Stability:

±0.5ppm~±2.0ppm

Size:

3.2*2.5*0.9mm

Applications:

Mobile Phone, GPS, Wireless Communications, IoT, Etc

Minimum Order Quantity:

3000pcs

Price:

negotiable

Packaging Details:

3Kpcs/Reel

Delivery Time:

4-6 wks

Payment Terms:

T/T

Supply Ability:

70KKpcs/M

Highlight:

3.2 x 2.5 x 0.9mm tcxo vctcxo

Mobile Phone crystal 3225

Product Description

SMD 3225 TCXO With Clipped Sinewave Output 32.000MHz 1.8-3.3V

Features

Output frequency range from 10MHz to 52MHz

3225 size, 0.90mm high SMD TCXO /VC-TCXO

Low voltage operation and low phase noise

Temperature stability: ±0.5ppm~±2.5ppm

VCTCXO available

Automatic mounting and reflow soldering

Applications: Smartphones, Wearables, IoT, GPS, WLAN and more

RoHS Compliant & Pb-Free

Specifications

Type		7T Series SMD TCXO / VC-TCXO
Output Type		Clipped Sine wave
Output Load		10KΩ//10pF
Supply Voltage		1.8~3.3V
Frequency Range		10~52MHz
Supply Current		2.0mA Max.
Output Level		0.8Vp-p Min.
Frequency Stability	Tolerance	±2.0ppm Max. (after 2 reflows )
	vs Temperature	±0.5ppm~±2.5ppm
	vs Supply Voltage	±0.2ppm Max. (Vcc±5%)	±0.2ppm Max. (Vcc±5%)
	vs Load	±0.2ppm Max. (Load varies±10%)
	vs Aging	±1.0ppm Max./Year
Auto Frequency Control (AFC) Range		±5ppm~±10ppm (1.4±1V)
Start-up Time		2ms Max.
Operating Temperature		-40~+85℃
Phase Noise @ 19.2MHz	100Hz	-115dBc/Hz
	1KHz	-135dBc/Hz
	10KHz	-148dBc/Hz
Packing Unit		3000pcs./Reel

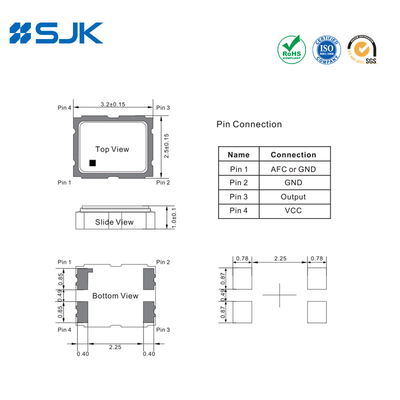

Dimensions [mm]

Captura de pantalla 2022-03-25 153852.jpg

SMD 3225 TCXO With Clipped Sinewave Output 32.000MHz 1.8-3.3V 1 +86-755-88352869

SMD 3225 TCXO With Clipped Sinewave Output 32.000MHz 1.8-3.3V 2 rita@q-crystal.com

Tags:

3.2 x 2.5 x 0.9mm tcxo vctcxo

Mobile Phone crystal 3225

1612 SMD TCXO Or VC-TCXO 10~52MHz 1.8V~3.3V ±0.5ppm -40~+85℃ Clipped Sinewave Output

Get Best Price

video

3225 SMD TCXO With 38.4MHz 3.3V Clipped Sinewave Output

Get Best Price

video

SMD Big Size 14 X 9.0mm TCXO 5 ~ 40MHz 3.3V For Base Station

Get Best Price

video

SMD 7050 TCXO With 26.000MHz 1.8-3.3V Clipped Sinewave Output

Get Best Price

video

SMD 5032 TCXO With Clipped Sinewave Output 10~52MHz 1.8-3.3V

Get Best Price

video

SMD 3225 TCXO With Clipped Sinewave Output 32.000MHz 1.8-3.3V

Get Best Price

video

SMD 2520 TCXO / VC-TCXO Crystal Oscillators With Clipped Sinewave Output

Get Best Price

video

SMD 2016 TCXO VC-TCXO Crystal Oscillators With Clipped Sinewave Output 26-52MHz For GPS

Get Best Price

Crystal Resonator

Series 6A, HC-49/U Crystal Unit

Series 6B, HC-49S/SS Crystal Unit

Series 6C, HC-49SMD/49SSMD Crystal Unit

Series 6P HC-M49SMD Crystal Unit

Series 6D, UM-1 Crystal Unit

Series 6Z, Cylinder Type Crystal Unit

Series 7S, SMD 1210 Seam Crystal Unit

Series 7Y, SMD 1612 Seam Crystal Unit

Series 7F, SMD 2016 Seam Crystal Unit

Series 7E, SMD 2520 Seam Crystal Unit

Series 7U, SMD 3225 Seam Crystal Unit

Series 7I, SMD 5032 Seam Crystal Unit

Series 6G, SMD 6035 Seam Crystal Unit

Series 6F, SMD 7050 Seam Crystal Unit

Series 7Z, SMD 2520 Glass Crystal Unit

Series 7V, SMD 3225 Glass Crystal Unit

Series 6I, SMD 5032 Glass Crystal Unit

SMD 6035 Glass Crystal Unit

32.768KHz Tuning Fork Crystal

Series 7K, SMD 1610 Tuning Fork Crystal

Series 7R, SMD 2012 Tuning Fork Crystal

Series 7L, SMD 3215 Tuning Fork Crystal

Series 7M, SMD 7015 Tuning Fork Crystal

Series 6LC, SMD 8038 Tuning Fork Crystal

Series 6LB, SMD 206B Tuning Fork Crystal

Series 6K6, Through-Hole 2*6mm Tuning Fork Crystal

Series 6K8, Through-Hole 3*8mm Tuning Fork Crystal

Crystal Oscillator

Series 8N, SMD 1612 Crystal Oscillator

Series 1N, SMD 2016 Crystal Oscillator

Series 2N, SMD 2520 Crystal Oscillator

Series 3N, SMD 3225 Crystal Oscillator

Series 7N, SMD 5032 Crystal Oscillator

Series 6N, SMD 7050 Crystal Oscillator

Series 9N, SMD 1490 Crystal Oscillator

Series 6MF, Thru-Hole Full Size Crystal Oscillator

Series 6MH, Thru-Hole Half Size Crystal Oscillator

Differential Oscillator

Series 3J, SMD 3225 LVPECL Output Oscillator

Series 3D, SMD 3225 LVDS Output Oscillator

Series 3H, SMD 3225 HCSL Output Oscillator

Series 5J, SMD 5032 LVPECL Output Oscillator

Series 5D, SMD 5032 LVDS Output Oscillator

Series 5H, SMD 5032 HCSL Output Oscillator

Series 7J, SMD 7050 LVPECL Output Oscillator

Series 7B, SMD 7050 LVDS Output Oscillator

Series 7H, SMD 7050 HCSL Output Oscillator

Series 9J, SMD 1490 LVPECL Output Oscillator

Series 9D, SMD 1490 LVDS Output Oscillator

OCXO

Series 1X, SMD 9*7 Size OCXO

Series 9X, SMD 14*9*5 Size OCXO

Series 5X, SMD 25*22*11 Size OCXO

Series 2X, Thru-hole OCXO

Series 3X, Thru-hole 20*20 OCXO

Series 9M, Thru-hole 25*25*12 OCXO

Series 6X,Thru-hole 36*27*12 Size OCXO

TCXO/VC-TCXO

Series 7X, SMD 2016 TCXO / VC-TCXO

Series 7Q, SMD 2520 TCXO / VC-TCXO Clipped Sine Wave

Series 7T, SMD 3225 TCXO / VC-TCXO CMOS

Series 5T, SMD 5032 TCXO / VC-TCXO

Series 8T, SMD 7050 TCXO / VC-TCXO

Series 9T, SMD 1490 TCXO / VC-TCXO

Series 6T, Thru-hole TCXO / VC-TCXO

Series 1T SMD 1612 TCXO/VC-TCXO

Series 8W SMD 3225 TCXO /VC-TCXO (Clipped sine wave)

Series 7W SMD 2520 TCXO /VC-TCXO (CMOS)

VCXO

Series 3S, SMD 3225 CMOS Output VCXO

Series 3P, SMD 3225 LVPECL Output VCXO

Series 5S, SMD 5032 CMOS Output VCXO

Series 5P, SMD 5032 LVPECL Output VCXO

Series 5V, SMD 5032 LVDS Output VCXO

Series 6S, SMD 7050 CMOS Output VCXO

Series 7P, SMD 7050 LVPECL Output VCXO

Series 6V, SMD 7050 LVDS Output VCXO

Series 9S, SMD 1490 CMOS Output VCXO

Series 9P, SMD 1490 LVPECL Output VCXO

Series 9X, SMD 1495 Size OCXO

Series 5X, SMD 252211 Size OCXO

Series 9M, Thru-hole 252512 OCXO

Series 6X,Thru-hole 362712 Size OCXO
